Baroque Garden in Wilanów, Poland

Description

This 3D model presents a layered spatial representation of the Baroque Garden at Wilanów Palace, designed for tactile visualization and UV printing technology.

The model consists of three map levels, each showing the garden at a different scale and level of detail:

• Level 1 – A general plan of the Wilanów Palace complex, presenting the palace building and the surrounding garden layout within the broader spatial context.
• Level 2 – A map of the Baroque Garden, illustrating the geometric garden composition, main paths, parterres, terraces, and the relationship between the palace and the formal garden layout.

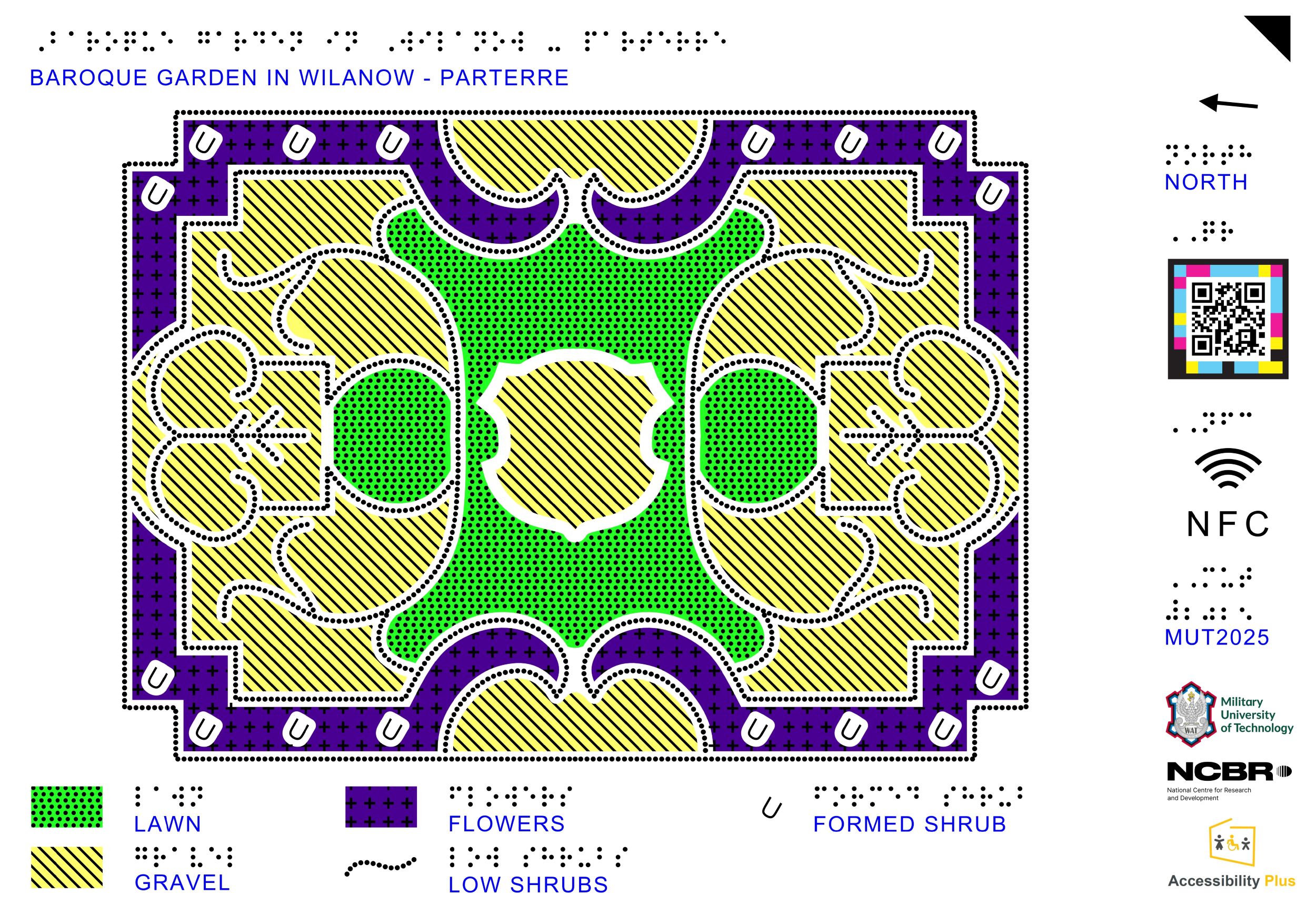

• Level 3 – A highly detailed map of a selected fragment of low vegetation, presented at a large scale, allowing a closer view of the structure and arrangement of plant elements within the garden.

The model was prepared specifically for UV printing, using a layered structure that represents spatial hierarchy and selected landscape elements through differences in elevation. The project includes PDF files for each printable layer, corresponding to the following thickness levels: 0.5 mm, 0.8 mm, 1.0 mm, 1.5 mm, 2.0 mm. Additionally, the set contains a full-color base layer, which serves as the visual background for the UV-printed relief layers.
