<? Graphic representation of a point symbol. A symbol consisting of a horizontal line 1 mm thick and a dot with a radius of 1.1 mm located 1.15 mm from the line.

<? Graphic representation of a point symbol. A filled isosceles triangle with its base at the top of the symbol

<? Graphic representation of a point symbol. A 0.6 mm thick square with a 0.7 mm thick plus sign measuring 2.8 x 2.8 mm placed in the center of the square.

<? Graphic representation of a point symbol. A 0.6 mm thick arc with its arms pointing upward and a centrally located dot with a radius of 0.6 mm.

<? Graphic representation of a point symbol. A filled rectangle.

<? Graphic representation of a point symbol. Three lines, each 0.6 mm thick, connected at right angles.

<? Graphic representation of a point symbol. The letter H, 0.6 mm thick.

<? Graphic representation of a point symbol. A square with a thickness of 0.6 mm

<? Graphic representation of a point symbol. Filled square

<? Graphic representation of a point symbol. The letter V, 0.6 mm thick, inscribed within a square.

<? Graphic representation of a point symbol. A filled circle

<? Graphic representation of a point symbol. A 0.6 mm thick rhombus

<? Graphic representation of a point symbol. An equilateral triangle with a thickness of 0.6 mm

<? Graphic representation of a point symbol. An inverted letter T, 0.6 mm thick.

<? Graphic representation of a point symbol. Two horizontal lines, each 1 mm wide, spaced 2 mm apart.

<? Graphic representation of a point symbol. Cane-like shape with a rounded top (arc radius 2 mm), thickness 0.6 mm

<? Graphic representation of a point symbol. Semicircle with endpoints connected by a straight line, thickness 0.6 mm

<? Graphic representation of a point symbol. A circle with a line thickness of 0.6 mm, containing a dot with a radius of 0.75 mm placed at the center of the symbol.

<? Graphic representation of a point symbol. Circle, thickness 0.6 mm

<? Graphic representation of a point symbol. Gently curved arc, thickness 0.66 mm

<? Graphic representation of a point symbol. Crescent shape facing left, thickness 0.6 mm

<? Graphic representation of a point symbol. Sigma (uppercase Greek letter), horizontally symmetrical

<? Graphic representation of a point symbol. Plus sign with thickness of 1 mm

<? Graphic representation of a point symbol. Four circles inscribed in a square, each with a radius of 1.2 mm, spaced 2.2 mm apart

<? Graphic representation of a line symbol. A double line with a thickness of 0.60 mm, spaced 5 mm apart.

<? Graphic representation of a line symbol. A square with a side length of 2.00 mm repeated along the path every 5.00 mm.

<? Graphic representation of a line symbol. A rectangle measuring 3.50 mm by 0.70 mm repeated along the path every 2.00 mm.

<? Graphic representation of a line symbol. A line with a thickness of 1.2 mm featuring protruding squares with a side length of 1.2 mm, spaced every 3.8 mm.

<? Graphic representation of a line symbol. A double line with a thickness of 0.60 mm, spaced 2.40 mm apart. The inner line consists of rectangles measuring 0.60 mm by 4.00 mm, spaced every 4.00 mm.

<? Graphic representation of a line symbol. A double line with a thickness of 0.60 mm, spaced 2.40 mm apart. The inner line consists of circles with a radius of 0.5 mm, repeated every 3.00 mm.

<? Graphic representation of a line symbol. A line with a thickness of 1.4 mm.

<? Graphic representation of a line symbol. A larger circle with a radius of 1 mm and a smaller one with a radius of 0.5 mm. They appear in a pattern of 1 large and 2 small circles, spaced every 2 mm.

<? Graphic representation of a line symbol. A double line with a thickness of 0.60 mm, spaced 2.40 mm apart.

<? Graphic representation of a line symbol. A double line with a thickness of 0.60 mm, spaced 1.20 mm apart. The inner line consists of crosses with a line thickness of 0.60 mm and an overall size of 3.00 mm, spaced every 3.00 mm.

<? Graphic representation of a line symbol. A circle with a radius of 0.50 mm repeated along the path every 2.00 mm.

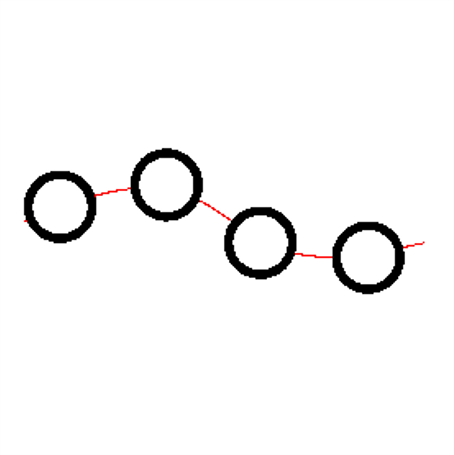

<? Graphic representation of a line symbol. A circle with a line thickness of 0.50 mm and an outer radius of 2.00 mm, repeated along the path every 6.00 mm.

<? Graphic representation of a area symbol. Circles with radii of 1.80 mm and 0.50 mm arranged in a regular grid with 4.00 mm spacing between grid nodes.

<? Graphic representation of a area symbol. Alternating solid and dashed lines spaced at 2.00 mm intervals. The solid line has a width of 0.60 mm; the dashed line consists of 0.90 mm squares separated by 2.10 mm gaps.

<? Graphic representation of a area symbol. A vertical line with a thickness of 0.6 mm, segmented at nodes every 4.00 mm (resulting in 5.66 mm segment length), starting at a 45° angle and bending by 90° at each node. As a result, the overall line runs vertically, although none of its segments are vertical.

<? Graphic representation of a area symbol. Curved lines with a width of 0.60 mm, spaced at 5.00 mm intervals. Each curve consists of nodes placed every 10.00 mm, with symmetrical Bézier control handles extending 5.00 mm from each node in both directions.

<? Graphic representation of a area symbol. Solid lines with a width of 0.60 mm, spaced 2.40 mm apart and inclined 45° to the right.

<? Graphic representation of a area symbol. Double line with a width of 0.60 mm and a length of 3.60 mm, separated by a 1.60 mm gap. Elements spaced 5.20 mm apart horizontally and 1.20 mm vertically; every second row shifted 4.00 mm to the right.

<? Graphic representation of a area symbol. Equilateral triangles with a 1.50 mm side length, spaced at 2.00 mm intervals.

<? Graphic representation of a area symbol. Crosses with a line width of 0.60 mm and an overall size of 3.60 mm, arranged in a regular grid with 5.40 mm spacing.

<? Graphic representation of a area symbol. Horizontal lines with a width of 0.60 mm, spaced 1.80 mm apart.

<? Graphic representation of a area symbol. Rectangles measuring 0.60 mm in width and 2.40 mm in length, rotated 45° to the right. The elements are arranged in a regular grid with 5.00 mm spacing between grid nodes.

<? Graphic representation of a area symbol. Leaf-shaped symbols arranged in a regular grid with 4.00 mm node spacing. Every second row is shifted 4.00 mm to the right and mirrored horizontally. Each leaf symbol is formed by the intersection of two circles with a 2.00 mm radius, whose centers are offset by 4.00 mm along both axes.

<? Graphic representation of a area symbol. Squares with a side length of 3.60 mm, arranged in a regular grid with 4.00 mm spacing.

<? Graphic representation of a area symbol. Circles with a radius of 0.50 mm, arranged in a regular grid with 2.00 mm spacing between grid nodes. Every second row is offset by 1.00 mm.

<? Graphic representation of a area symbol. Circles with a radius of 1.50 mm, arranged in a regular grid with 4.50 mm spacing between grid nodes.
